Vagtacho K+CAN

Component Security Data Editor. Works with Marelli (NEC+95320) dashes ONLY!

This feature requires MMKM upgrade! Buy upgrade for Marelli NEC+95320!

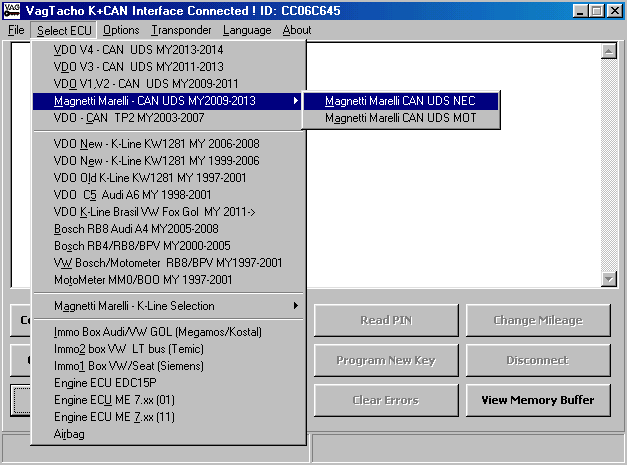

Select "Marelli CAN UDS NEC". Press "Connect Selected ECU". See the next picture.

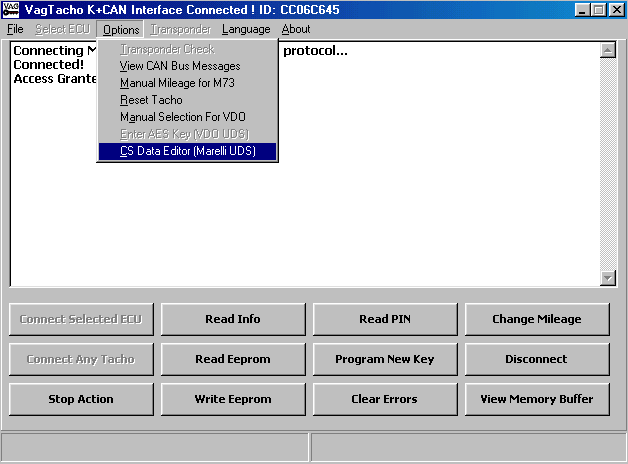

After successful connection, click "Options - > CS Data Editor".

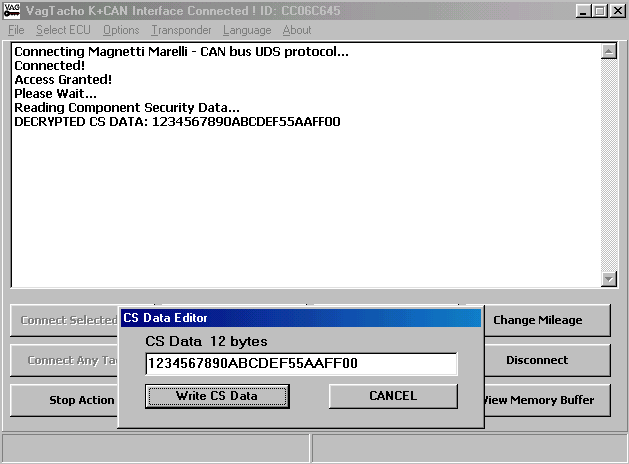

Vagtacho will read CS data and will show it on screen. If you want to change CS data, enter new data (all 12 bytes!) and click Write CS Data.


The change of Component Security Data may result to malfunction of Immobiliser! Engine CAN NOT be started with WRONG CS DATA!

Questions? Send an e-mail:
